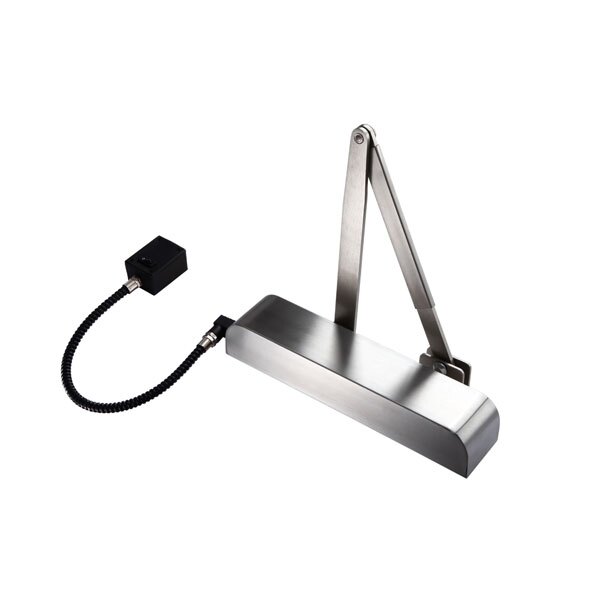

9880R Guardian Electro-Magnetic Door Closer

Door closers designed for Care Homes and Public Facilities where fire doors need to be held open.


STOCK:       IN STOCK

DELIVERY:  Next day for all orders placed before 17:00

QUANITITY DISCOUNTS: Available for orders of 5 or more units.

The 9880 R Guardian Electro-Magnetic Door Closer by Assa/Exidor is a swing-free door closer designed to meet the needs of care homes and public facilities.


The Guardian solves the issue of doors being held open by physical devices such as door wedges (or fire extinguishers!) while ensuring safe passage for residents.


Power rated to EN4 makes this closer suitable for doors up to 1100mm wide and 80kg in weight. It is certified by Certifire as suitable for fire doors and is CE marked.


The integrated door loop neatly integrates to maintain the aesthetics of the Guardian closer. This closer is a prestigious option, fitted with a low-profile, semi-radiused Satin Stainless Steel cover and a matching arm set.


Anti-slam:  The swing-free mode of a closer can allow a door to slam shut. Whether this is accidental, deliberate, or just caused by a draft, it poses a real risk to frail residents. So the Guardian closer has been developed explicitly with an anti-slam function that controls and slows the door's motion.


Drift Resistance : Exidor's Guardian closer offers a low-level control on the door, which stops it from drifting from its open position – eradicating the need to wedge doors open, yet still allowing the door to operate freely to the user. The 9000 Series is supplied with either a stylish square cover or an elegant radius cover and has a matching adjustable arm as standard.

 Guardian 9880 Electro-Magnetic Door Closer Installation Instructions (164KB)


EN4

Power Size 4 for doors up to 80Kg / 100mm wide

Latching Speed

Fully adjustable latching speed

Closing Speed

Fully adjustable sweep speed

Fixings

Supplied complete with Figue 1 and Figure 6 brackets and all screw fixings

Design

Elegance radiused cover in Satin Stainless Steel with matching arm

Installation

Comprehensive installation instructions supplied

Name Value
Backcheck No
Cover Included true
Delayed Action false
Installation Type Surface
Latching Speed true
Max Closing Force EN4
Max Door Weight (kg) 80
Max Door Width (mm) 1100
Ordering Codes D1071.900 / 9880R-SSS / 20020306
Standard Ce, Certifire, EN 1155

  • Power size 4

  • Adjustable latching and sweep speed

  • Supplied with brackets for fig 1 and fig 6 fixing

  • Power supply units are also available

  • Raidus Cover

  • Satin Stainless Steel finish
